The advantages of different wheel balancer

CX5auto wheel balancer have two series. "3" and "7".

The main difference is the core technology. The 3 series is running with a motor and belt.  7 series is the use of magnetic suspension technology. There is no external motor drive to reduce vibration but also more accurate, longer service life.

3 series have CX5-301G and CX5-377AW. The difference between these two models:









1. Different angles.
CX5-301G: Angular Position: 64
CX5-377AW: Angular Position: 128
Absolutely, CX5-377AW will be more accurate.



2. Different display.
CX5-301G: a large key pad (Display key pad),


CX5-377AW (Pro interface + Key pad): a professional interface + key pad




3. different functions.
CX5-377AW Distance, Diameter and Width Data Input.
The CX5-301G is a manual input.





4. Rim diameter range (Rim diameter range)
CX5-301G: 10 "-24"
CX5-377AW: 10 "-26"



Specification:

Model: CX5-301G
Rim diameter range: 10"-24"
Max rim width: 17"
Max wheel diameter: 36"
Distance to spin flange: 10"
Max wheel weight: 65kg
Balancing precision: 1g
Balancing speed: 180-220RPM
Display: Display key pad
Angular Position: 64
Ounce/Gram selectable: Yes
Balancing modes: 6
Shipping weight: 135kg
Voltage: 220V
Packing size: 97*77*115cm

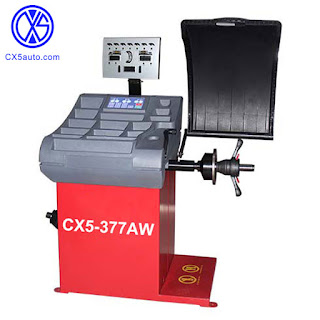

Model: CX5-377AW
Rim diameter range: 10"-26"
Max rim width: 14"
Max wheel diameter: 36"
Distance to spin flange: 10"
Max wheel weight: 65kg
Balancing precision: 1g
Balancing speed: 180-220RPM
Display: Pro interface + key pad
Angular Position: 128
Ounce/Gram selectable: Yes
Balancing modes: 7
Shipping weight: 155kg
Voltage: 220V
Packing size: 98*77*113cm





7 Series models built-in self design balancing animation program with magnetic drive, 512 angular positions, smart position locator and automatic wheel data input. It has a rim diameter range of 8 "-30".  They also support laser positioning technology. Visual Laser Technology projects the laser cross on rim for adhesive needs weight exactly location in ALU mode and OPT.





The difference between CX5-733 and CX5-766 is
Display
733 is (Pro interface + Key pad) professional interface + keypad
766 is LCD + Key pad












The above are wheel balancer for the car, there is a car tires can be the same time and car tire balance, is CX5-788, rim diameter range is 10 "-39". It acquires world-wide innovative technology with magnetic drive, low speed technology, 512 angular positions, Truck and car balancing modes.








Package
